Rocks and the Rock Cycle
  • (Set up for Cornell Notes)
2
What are rocks?
  • Rocks are made of a mixture of minerals & other materials video
3

4
Igneous Rocks (a bit more detail)
  • Formed from lava or magma (Both are molten or liquid rock)
    • Magma= underground
    • Lava = above ground

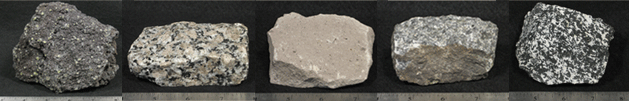

  • 2 basic types of igneous rock
    • Intrusive/Plutonic– form when magma cools
      • Large crystals (coarse-grained)
    • Extrusive/Volcanic– form when lava cools
      • Small crystals (fine-grained)
    • Think: Why are the crystal sizes different?
5

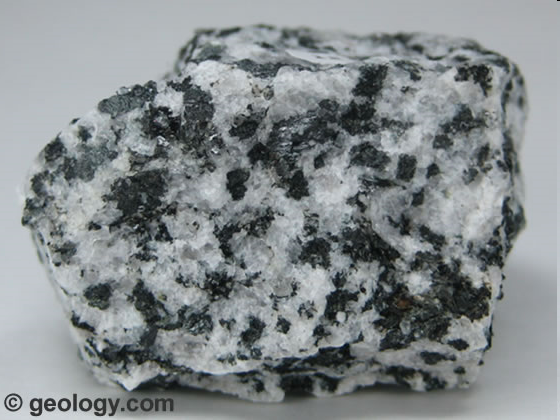

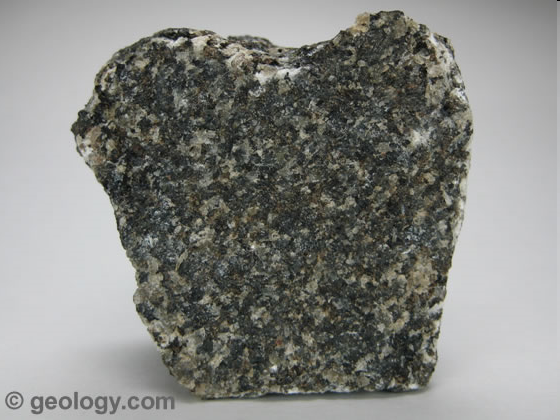

Intrusive Igneous Rock
  • Rocks form from magma cooling beneath Earth’s surface
  • Takes a long time to cool and harden
  • Coarse (large) grained

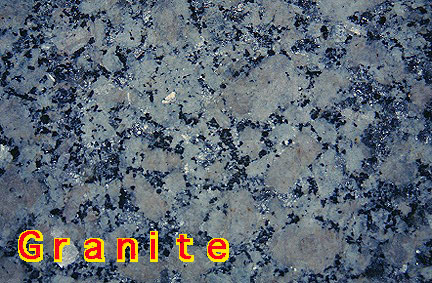

  • Crystals form and grow (granite)
6
Intrusive Igneous Rock
  • Rocks crystallize from cooling magma


7

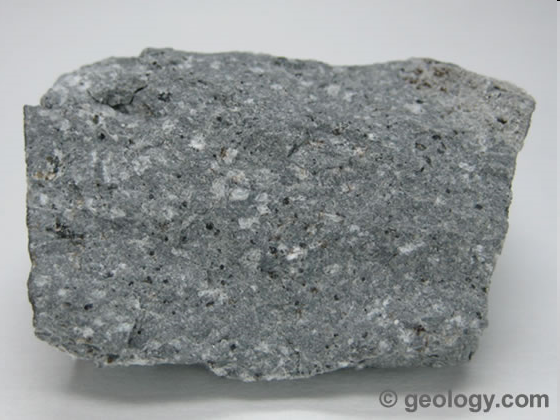

Extrusive Igneous rocks
  • Forms from magma that is brought to Earths surface (lava)
  • Lava cools more rapidly so crystals do not have time to form or are small and difficult to see
  • Fine grained or lacking crystals like Obsidian
8

9
Are there other kinds of Igneous Rock?
  • Yes. But they are still classified as intrusive or extrusive.
10
Are there other kinds of Igneous Rock?
  • Yes. But they are still classified as intrusive or extrusive.
11

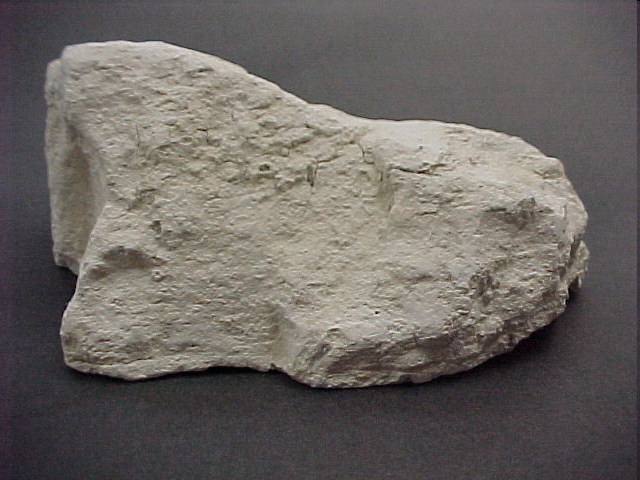

Sedimentary rocks (more about ‘em)
  •  Formed from compressed (squeezed) or cemented layers of sediment
  •  There are 3 types

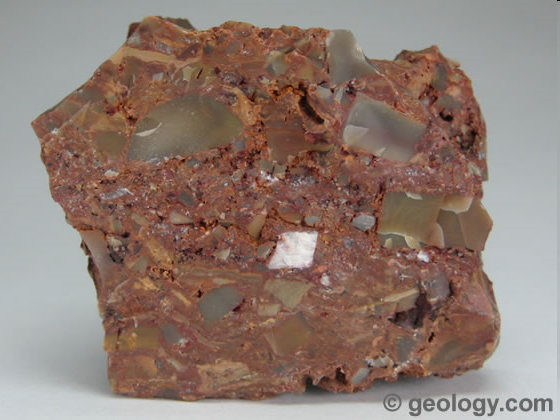

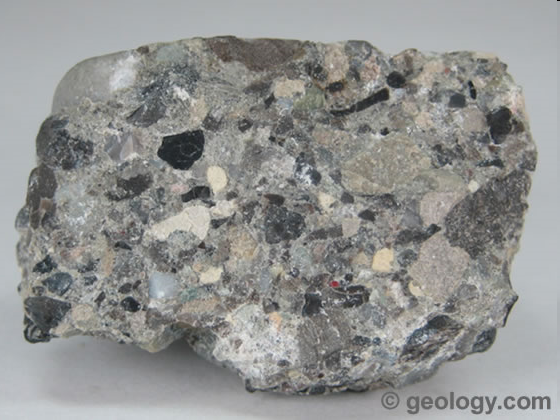

    • Clastic – formed from mechanical weathering debris or pieces of other rocks that are glued together. (ex. Sandstone)

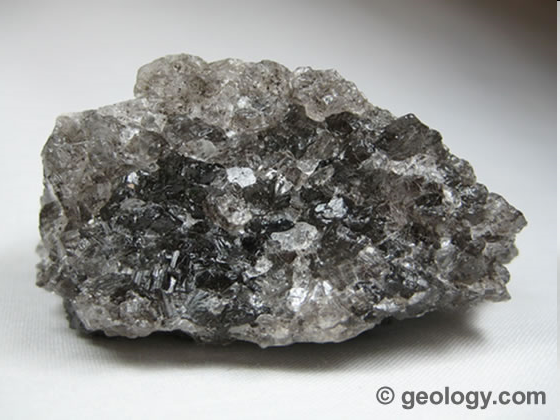

    • Chemical – formed by precipitation of different elements dissolved in water.
    •  Organic – formed from remains of living things


12
How sedimentary rock is formed
  • Like soil or dirt, they are products of weathering that form at or near Earth’s surface.
  • Weather or nature is the major factor here. For example:
    • Water
    • Rivers cutting through
    • Ice
    • Rain
    • Earthquakes
13
How it becomes Sedimentary rock
  • The rock is formed from weathered debris that is carried from one place to another, redeposited, buried, and then hardened into rock.

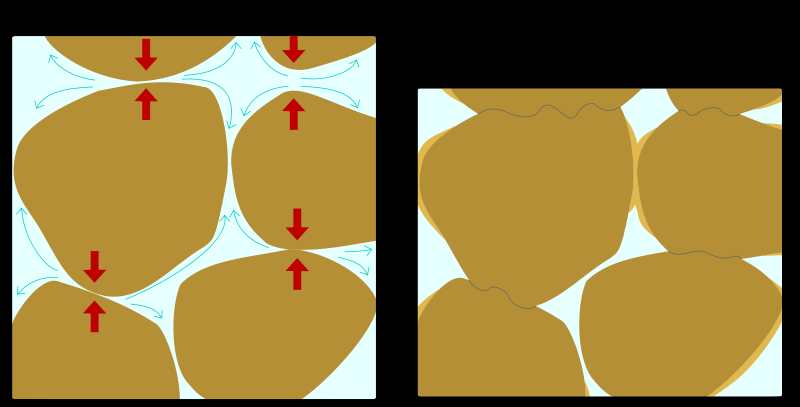

  • Sediments are compressed from the weight above the forming rock.
14

15

16

17
Sedimentary rock
  • Rocks that contain fossils are sedimentary rock.
  • Why will you only find fossils in sedimentary rock?
18
Metamorphic Rock
  • A rock that forms from other rocks as a result of intense heat, pressure, or chemical processes.


19
Metamorphic Rock
  • Some examples:
    • Limestone ŕ marble
20

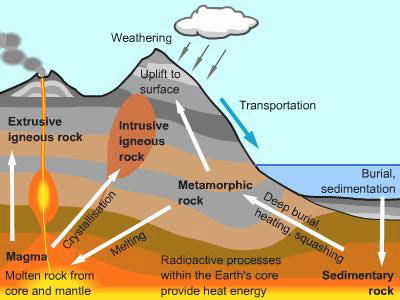

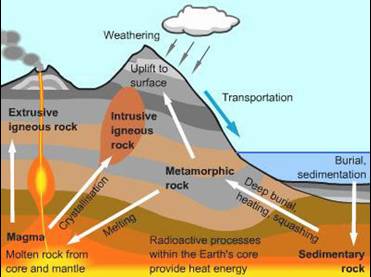

The Rock Cycle!
  • Animation! http://www.classzone.com/books/earth_science/terc/content/investigations/es0602/es0602page02.cfm
21
Evidence of Ancient Life
  • Fossils are usually found in sedimentary rocks
  • Paleontologists are scientists who study fossils
22
Kinds of Fossils
  • Petrified: minerals replace tissue of dead/buried organism
  • Mold: hollow impression left by an organism
  • Cast: copy of organism’s shape (fits the mold)
  • Carbon film: thin layer of carbon left by organism (looks like a drawing)
23
"Trace Fossil:"
  • Trace Fossil: fossilized evidence of an organism’s activities
  • Preserved remains: remains of life w/little or no change
24

25
Fossils and Past Environments
  • Fossils help scientists understand how the Earth’s climate, environment, and life forms have changed through time
26
Finding the Relative Age & Absolute Age of Rocks
  • Relative age is a comparison.  “older” and “younger”
  • Absolute age is a number.
27
Position of Rock Layers

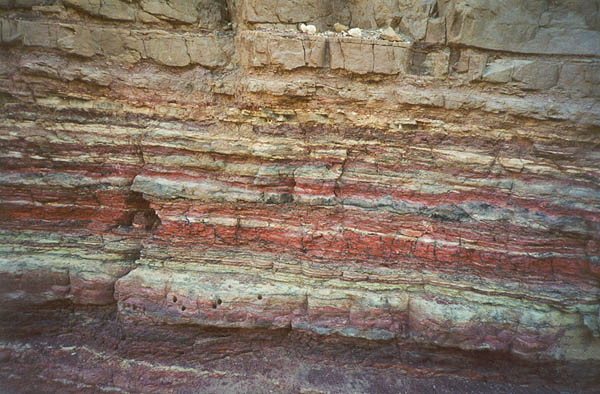

  • Law of superposition: In horiz. layers of sed. rocks, the oldest layer is at the bottom, and higher layers are younger than the layers beneath them.
28
Other Clues to Relative Age
  • Igneous intrusions are always younger than the layers of rock that surround them
  • Index fossils tell the relative age of the rock layer they are found in
29
Absolute Ages from Radioactive Dating
  • Scientists use the rate of radioactive decay to determine the absolute age of an igneous rock layer
  • (Why only igneous?)
  • Radioactive decay has been used to determine that the Earth is at least 4.6 billion years old
30
Igneous Rock Concept Map
  • Word List
  • Igneous Rock
  • Intrusive
  • Extrusive
  • Fine Grained
  • Silica
  • Course Grained
  • Magma
  • Lava
  • Light Colored
  • Dark Colored
31
Sedimentary & Metamorphic Rock Concept Map
  • Word List
  • Clastic
  • Chemical
  • Organic
  • Precipitation
  • Sediment
  • Water
  • Ice
  • Earthquakes
